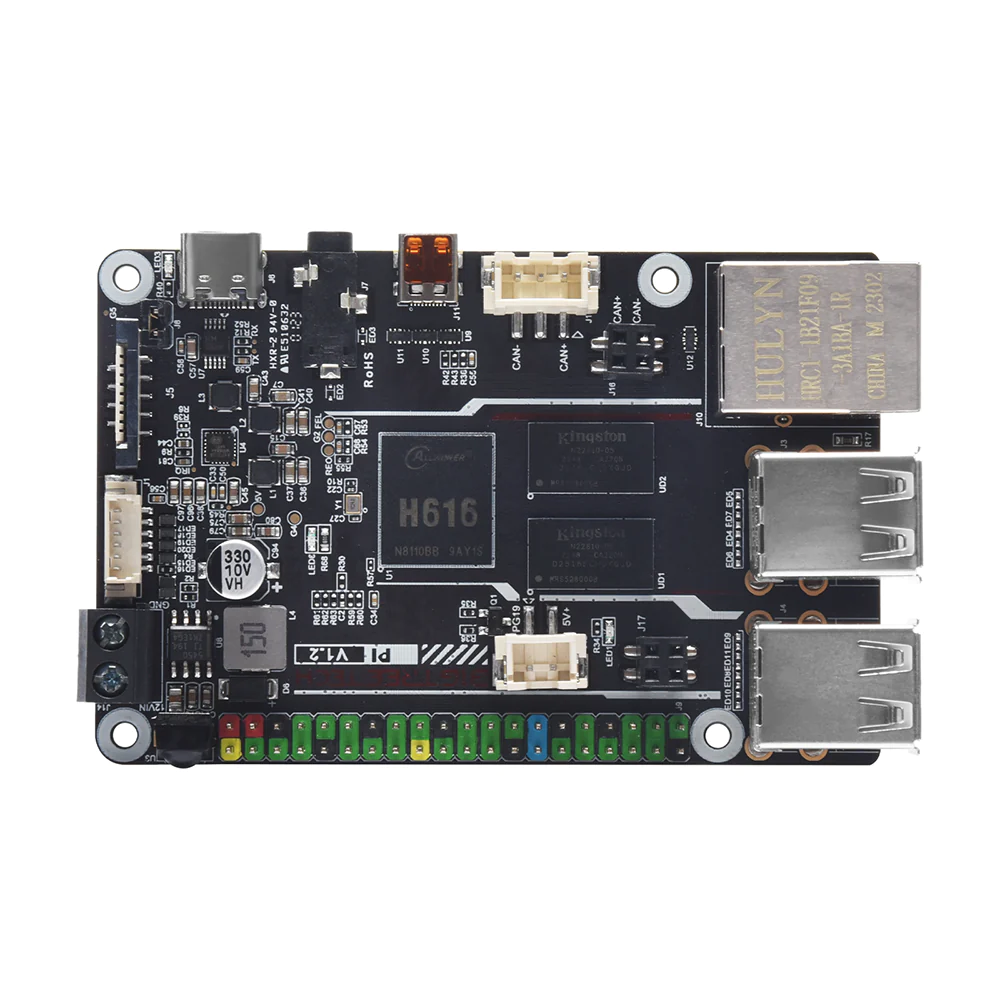

The BIGTREETECH Pi v1.2 board is a collaboration between Bigtreetech and Klipper. It has the same size and location of mounting holes as Raspberry Pi.

Strengths of the BTT Pi V1.2 board:

Klipper pre-configured to start printing right away Ability to work with a 3D cloud printer app Same size as a Raspberry Pi 3 model B A wide range of connections with 40-pin GPIO, 4 USB ports, HDMI port and Ethernet port Can be used for many applications, not only for 3d printing, but also for gaming, smart homes, IoT products Here are the main features of BTT Pi V1.2:

CPU: ALLWINNER H616, quad-core Cortex-A53 @1.5GHz GPU: Mali G31 MP2, OpenGL3.2 support RAM: 1GB DDR3L SDRAM Display: HDMI2.0A port, 4K support 4 USB 2.0 ports Fast Ethernet + WiFi 100Mbps Audio: 3.5 mm jack 40-pin GPIO Display: SPI port ADXL345 port On-board connection port for USB-CAN module. Built-in IR receiver Mounting holes are in the same location as Raspberry Pi. Package contains: 1 x BIGTREETECH Pi v1.2

Specifically: 1 x BTT Pi 1 x heatsink 1 x SPI cable 1 x wifi antenna 1 x BTT duck 1 x U2C CANBUS Module

Product dimensions: 85 x 56 mm Mounting dimensions: 64 x 49.4 mm Type-C input voltage: DC 5V±5%/2A IN power supply terminal input voltage: DC 12V-24V Pi v1.2 output voltage: 3.3V±2%/100mA Pi v1.2 WiFi: 2.4G/802.11 b/g/n wireless LAN You can find more information here: https://github.com/bigtreetech/BTT-Pi

**Pay attention to the heat dissipation of the Pi. If the running application consumes too many system resources, it will get very hot.

**The item you receive may differ in some features from the one depicted in the photo, depending on the production batch. Despite this, the functionality is maintained.
